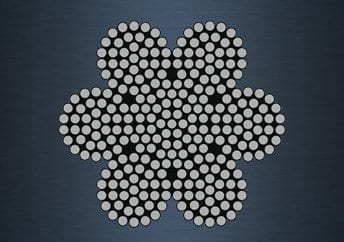

6×37 is a cross laid construction used for general engineering applications. 6×37 is also available with IWRC (independent wire rope core). In the UK 6×36 is a far more popular construction, whilst on the European mainland, vast quantities of 6×37 are used for a variety of applications.
Applications
- General engineering applications
- Crane ropes
- Hoist rope
| Breaking Loads | |||||
| Nominal Diameter | Approximate Mass | Minimum Breaking Loads | |||
| 1770 Mpa | 1960 Mpa | ||||
| [mm] | [kg/m] | [kN] | [Kg] | [kN] | [Kg] |
| 12 | 0.549 | 81.3 | 8,293 | 90 | 9,183 |
| 13 | 0.644 | 95.4 | 9,733 | 105.7 | 10,777 |
| 14 | 0.747 | 110.7 | 11,288 | 122.5 | 12,499 |
| 16 | 0.975 | 144.5 | 14,743 | 160.1 | 16,326 |
| 18 | 1.234 | 182.9 | 18,659 | 202.6 | 20,662 |
| 20 | 1.524 | 225.9 | 23,036 | 250.1 | 25,509 |
| 22 | 1.844 | 273.3 | 27,874 | 302.6 | 30,866 |
| 24 | 2.195 | 325.2 | 33,173 | 360.1 | 36,734 |
| 26 | 2.576 | 381.7 | 38,932 | 422.7 | 43,111 |
| 28 | 2.987 | 442.7 | 45,152 | 490.2 | 49,999 |
| 30 | 3.429 | 508.2 | 51,833 | 562.7 | 57,397 |
| 32 | 3.901 | 578.2 | 58,974 | 640.2 | 65,305 |
| 34 | 4.404 | 652.7 | 66,576 | 722.8 | 73,723 |
| 36 | 4.938 | 731.8 | 74,639 | 810.3 | 82,651 |
| 38 | 5.502 | 815.3 | 83,163 | 902.8 | 92,090 |
| 40 | 6.096 | 903.4 | 92,147 | 1000.4 | 102,039 |
| 42 | 6.721 | 996 | 101,592 | 1102.9 | 112,498 |
| 44 | 7.376 | 1093.1 | 111,498 | 1210.5 | 123,467 |
| 46 | 8.062 | 1194.8 | 121,865 | 1323 | 134,946 |
| 48 | 8.778 | 1300.9 | 132,692 | 1440.6 | 146,936 |
