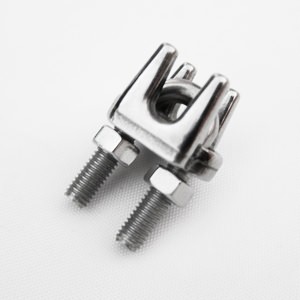

JIS Wire Rope Clip

JIS Wire Rope Clip

  • Item Number: 102
  • Size: 2mm-19mm
  • Material: AISI304 / AISI316
  • Product Description: Reference to JIS B2809 standard, JIS wire rope clip offers a greater load strength than DIN type. Please choose the corresponding specifications according to the diameter of the wire rope.

    JIS Wire Rope Clip details

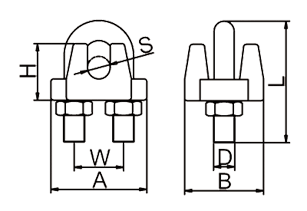

    jis wire rope clip drawing
    Size(ΦS)ABHDLWWT
    mmmmmmmmmmmmmmkg
    21512.5.510M32080.007
    3141410M32080.007
    4191814M42310.50.019
    5222016M529120.025
    6272217.5M634140.042
    8342820.7M84317.50.086
    9403122.3M1053210.128
    104334.523.7M1052210.155
    12503927.5M126325.60.235
    14524531M126828.60.285
    16604835M1480300.408
    19625339M1485350.478

    Customization

    We develope more than 100 kinds of new products each year, and we have full production capacity including design, mold development, proofing, mass production, precision machining, heat treatment and surface treatment, packaging and other.

    We also could provide you some effective suggestions because of our rich experience in manufacturing and service in the field of stainless steel riggings and glass curtain wall components, that makes a more reliable and stable cooperation relationship between our partner and us.

    How to customize or your own products? The customization process:

    1. Provide your samples or drawings or just tell us about your idea

    2. Confirm final drawings and product requirements

    3. Confirm contract details and sign a contract

    4. Make molds

    5. Make samples and confirm the samples

    6. Mass production

    7. Goods Delivery

    drawings
    • Precision Casting

    • casting banner
    • We have overcome a lot of technical problems in terms of surface quality, heat treatment, mechanical properties and product precision, which makes our casting products’ quality has always been in the top level.

    • Metal Stamping

    • metal stamping
    • We stamp metal parts ranging from small precision parts, such as electronic equipment and rigging hardware, to large precision components, including processing equipment and architectural components that are decorative and functional.

    • Wire Rope Assembly

    • wire rope assembly
    • LKS Stainless recently expanded its manufacturing systems to more efficiently fabricate custom wire rope cable assemblies. We supply 1mm to 40mm in diameter wire rope cable assemblies.

    • Machining

    • machining
    • We can carry out a series of mechanical processing such as lathing, milling, drilling, tapping, thread rolling and wire-electrode cutting on metal material castings, bars, plates and pipes.
