We offer Copper Wire Rope, Cables and Wire as well as Copper Wire Stranded Rope, Copper Braided Rope, Cables and Wire made using thin copper (Cu) wires braided or twisted together with a right hand or left hand twist on the cables provided.As a copper wire rope manufacturer, we are Chinese biggest copper wire rope manufacturer, monthly production capacity is 100tons. Multiple strands of copper are grouped together and braided into a round hollow shape, post which it is pressed into desired width and thickness. We also offer the provision of solderless and seamless tubular lugs around the strips of rope, wire and cable.
Copper Stranded Rope, Cables and Wire & Copper Braided Rope, Cables and Wire offer additional flexibility in comparison to single strand copper wire of the same cross section with the added benefit of easier connection. Additionally, Braided and Stranded Rope provide added wire longevity for applications with moderate to high vibration. Copper Braided Rope, Cables and Wire as well as Copper Stranded Rope, Cables and Wire see applications in welding and power equipment for electrical components as well as to conduct welding current in welding tools and lines.
Standard Specifications we offer for our Copper Braided and Stranded Ropes:
- High Flexibility & Conductivity ETP Grade Copper (Cu) with a minimum copper content of 99.90% and is ROHS Compliant
- Conductivity (IACS at 20 °C ): Based on Material Thickness, ranges from 97.00% – 99.25%
- Cross-sectional area for Stranded Ropes: 2 mm2 to 500+ mm2
- Cross-sectional area for Braided Ropes: 75 mm2 to 120+ mm2
- Right-Hand or Left-Hand twist available on request
- Braided Tapes & Rope can be Bare, Tin or Silver coated
- Plating on contact area: Bare, Tinned & Silver coating finish
- Insulation coating available on request: Insulation can be PE, PVC, Fibre-Glass, Anti-Tracking, etc.
Torsion Industries specialises in supplying Copper Stranded Wire Rope, Cables and Wire & Copper Braided Rope, Cables and Wire according to CUSTOM requirements. We can provide job – specific solutions according to application.

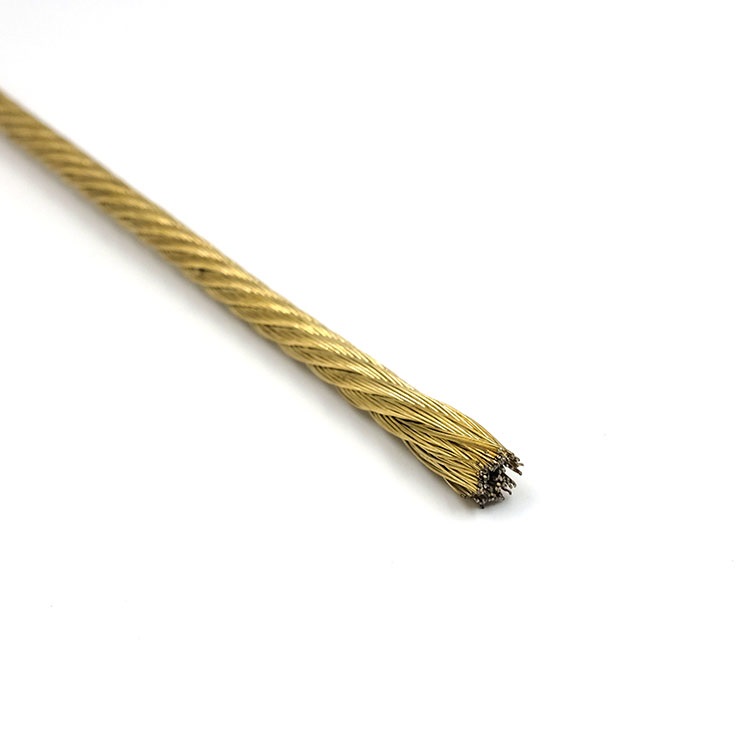

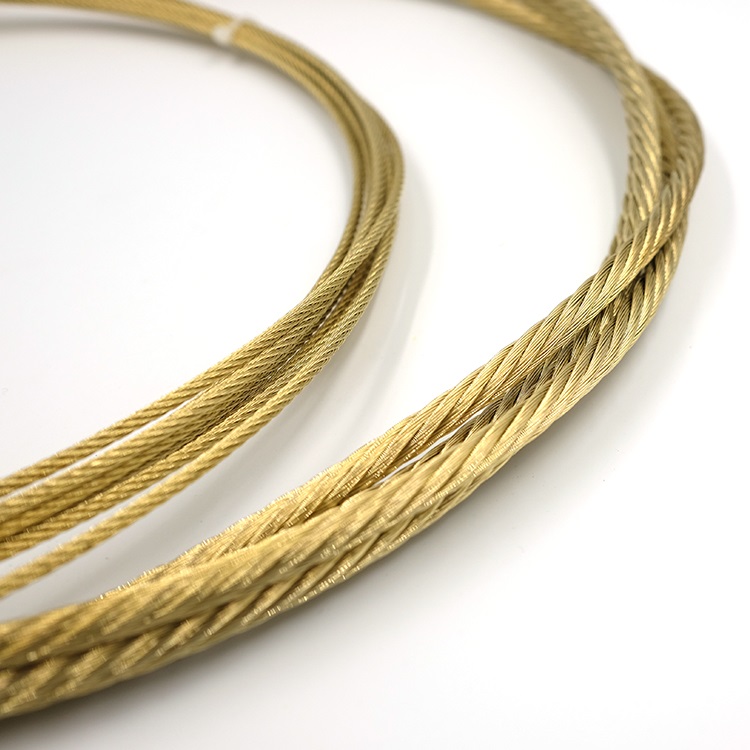

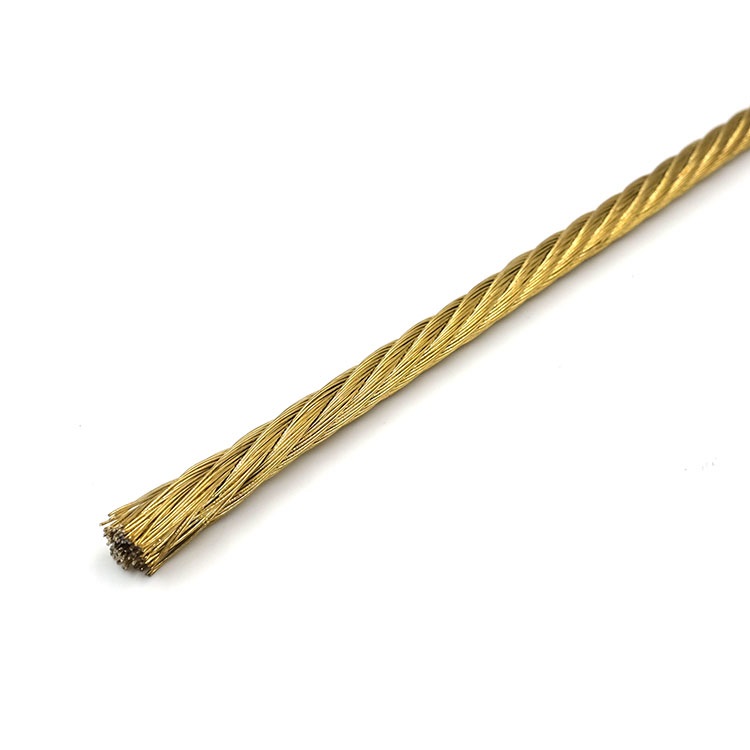

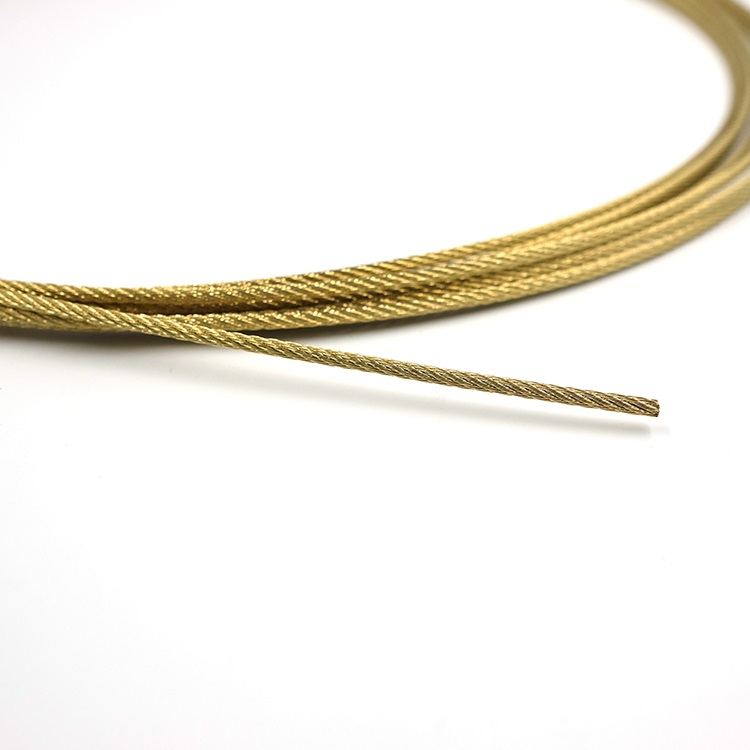

| Material | Copper coated/brass coated steel wire |
| Constuction | 1×7, 1×19, 6×7, 7×7, 6×19, 7×19, etc |
| Place of Origin | Shanghai, China |
| Sample | We can provide reference samples if available in stock, but the sample delivery cost should be borne by customer. |
How to order:
In ordering steel wire rope, you are requested to give us complete information as specified below:
a. Purpose: For which rope will be used.
b. Size: Diameter of the rope in millimeter or inches
c. Construction: Number of strands, number of wires per strand and type of strand construction.
d. Type of Core: Fiber core( FC), independent wire rope core(IWRC) or independent wire strand core(IWSC).
e. Lay: Right regular lay, left regular lay, right lang lay, left lang lay.
f. Coating: Bright(ungalvanized), galvanized or stainless, PVC or Grease.
g. Grade of wire: Tensile strength of wires.
h. Breaking Load: Minimum or calculated breaking load in tones or pounds.
i. Lubrication: Whether lubrication is desired or not, and required lubricant.
j. Length: Length of wire rope.
k. Packing: In coils wrapped with oil paper and hessian(orp.p) cloth, or on wooden reels.
l. Quantity: By number of coils or reels, by length or weight.
m. Remarks: Shipping marks and any other special requirement.
