Product Description

Telescopic Crane Trolley Steel Wire Rope LKS 8-1 P Should not used with a swivel

Telescopic cranes are mobile in the sense that they transport goods and items in aflexible manner. Also since telescopic cranes are further equipped with height adjustments, when itcomes to hauling and transferring the goods from one place to another, the problems related to height arecompletely eradicated.

General and High Performance Wire Rope. The use of wire rope worldwide has undoubtedly changedwhat the lifting and rigging industry is today. Wire rope is used for crane ropes, mooring lines, drill lines, hoist ropes, drag lines, and boom lines to name a few applications.

  • Rope category number (RCN) 09 according to ISO 4309
  • Ordinary lay
  • Zinc-coated class B standard
  • Should not used with a swivel
  • Special lubrication
  • Plastic padding

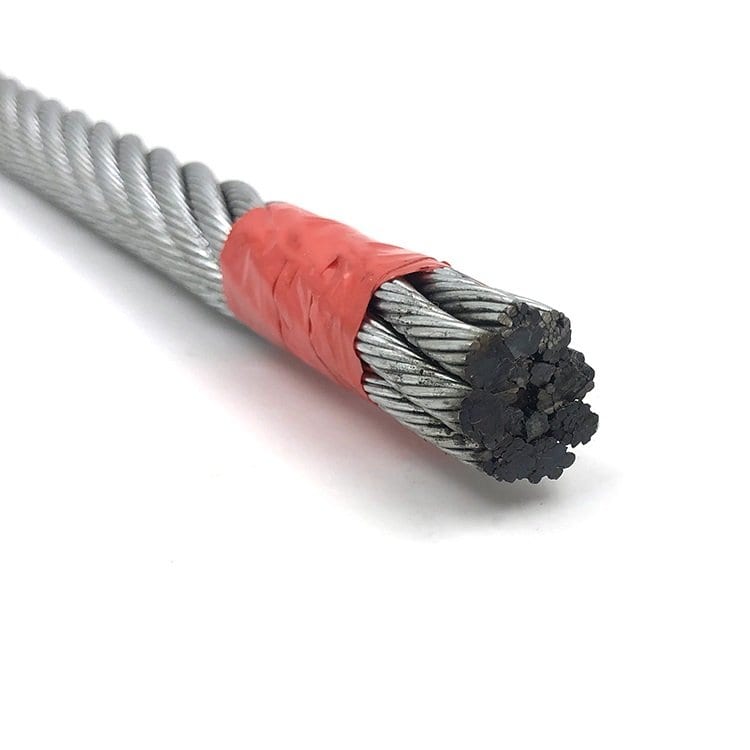

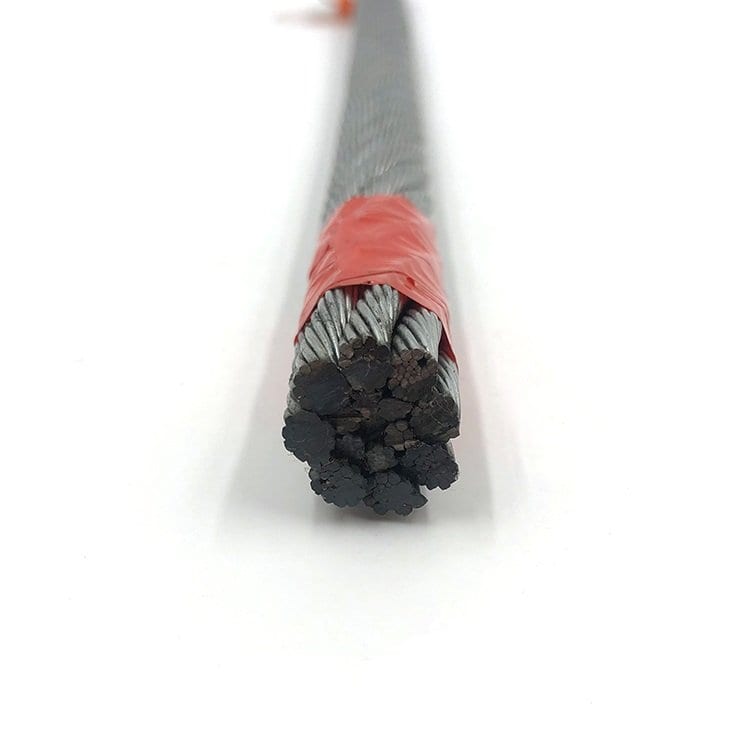

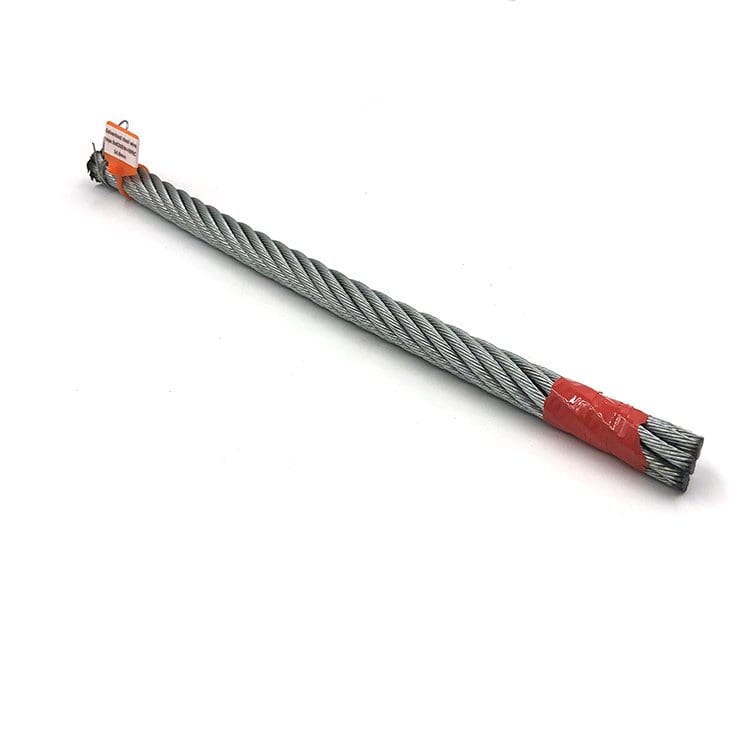

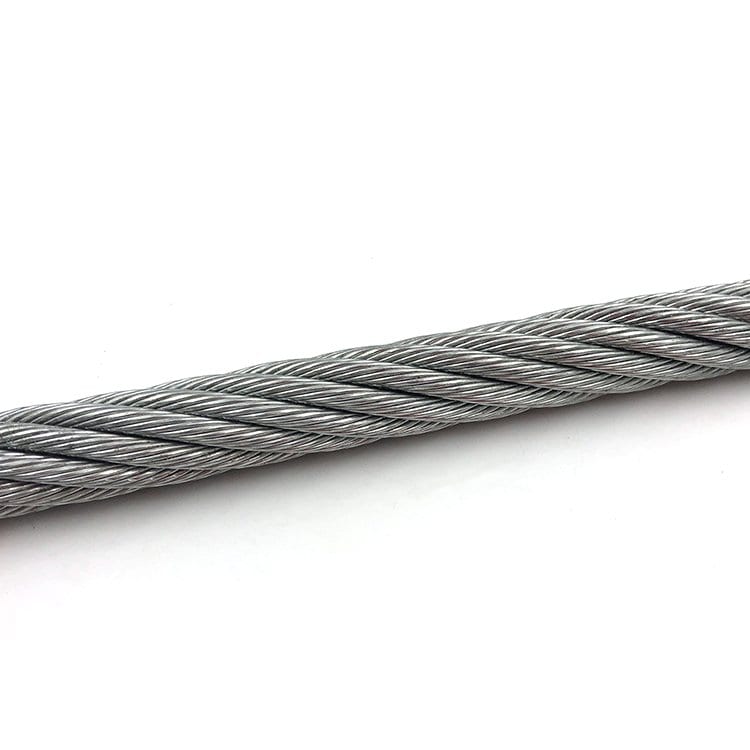

Our LKS 8-1 P is a non-rotation- resistant hoisting rope with plastic padding and 8 strands in the outer layer.


Technical Data




Ø   Weight Metallic
cross-section
MBK 1770 MBK 1960
mm   kg/100m mm2 kN kN
10   42.6 47.9 74.8 82.9
11   51.6 57.9 90.5 100
12   61.4 69.0 108 119
13   72.0 80.9 126 140
14   83.5 93.9 147 162
15   95.9 108 168 186
16   109 123 192 212
18   138 155 242 268
20   170 192 299 331
22   206 232 362 401
24   245 276 431 477
26   288 324 506 560
28   334 375 587 650
30   384 431 673 746
32   436 490 766 848
34   493 554 865 958
36   552 621 970 1074
38   612 688 1075 1191
40   679 762 1191 1319
42   748 841 1313 1454
44   821 922 1441 1596
46   894 1005 1570 1739
48   974 1094 1710 1893
50   1075 1187 1855
52   1143 1284 2006
Product Show

High quality galvanized steel wire rope China manufacturerHigh quality galvanized steel wire rope China manufacturerHigh quality galvanized steel wire rope China manufacturerHigh quality galvanized steel wire rope China manufacturer

Application

High quality galvanized steel wire rope China manufacturer

How to order:

 In ordering steel wire rope, you are requested to give us complete information as specified below:

a. Purpose: For which rope will be used.

b. Size: Diameter of the rope in millimeter or inches

c. Construction: Number of strands, number of wires per strand and type of strand construction.

d. Type of Core: Fiber core( FC), independent wire rope core(IWRC) or independent wire strand core(IWSC).

e. Lay: Right regular lay, left regular lay, right lang lay, left lang lay.

f. Coating: Bright(ungalvanized), galvanized or stainless, PVC or Grease.

g. Grade of wire: Tensile strength of wires.

h. Breaking Load: Minimum or calculated breaking load in tones or pounds.

i. Lubrication: Whether lubrication is desired or not, and required lubricant.

j. Length: Length of wire rope.

k. Packing: In coils wrapped with oil paper and hessian(orp.p) cloth, or on wooden reels.

l. Quantity: By number of coils or reels, by length or weight.

m. Remarks: Shipping marks and any other special requirement.

Brand Name

LKS

Type

Galvanized

Place of Origin

China

Alloy Or Not

Non-alloy

Standard

AISI, ASTM, BS, DIN, GB, JIS

Wire Gauge

1-20mm

Tensile strength

1570Mpa-2160Mpa

Steel Grade

Galvanized steel

Certificate

ISO9001
